Innovating to drive performance
At Rhino, we are focused on maximising transport performance. Our continued investment in design is another value-added service to help you innovate, improve efficiency and deliver for your customers. Our market research with you tells us that design is a key part of your business so we’ve decided to go the extra mile to support you. Meet Rhino Design Services as seen on Rhino’s video.
Rhino’s extensive product range allows you to maximise your product performance with a mudguard, mudflap or fitting component for almost every situation. Leverage our 3D modelling capabilities to integrate our design into your products. We offering the following services.

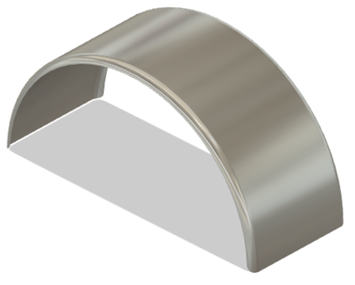

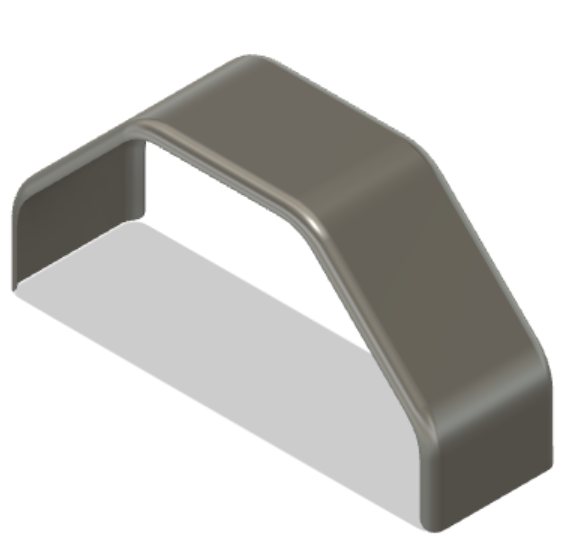

3D Angle projection
Import Rhino product files into software to view finished product
View First Angle projection drawings and dimensions
RHINO Drawing Disclaimer & IP
Product Design & Performance Notice
This product is manufactured from engineered polymer materials designed to provide controlled flexibility, impact resistance, and durability in dynamic operating environments (including vibration, debris exposure, and impact conditions).
Due to the nature of these materials and manufacturing processes, variations may occur between supplied drawings and the physical product. These may result from mould design, material composition, colour pigmentation, cooling rates, and storage conditions.
Flexibility is an intentional performance feature and may result in dimensional variation without affecting product function.
Dimensional Tolerance
Unless otherwise specified, all dimensions are nominal.
Typical dimensional variation may be up to ±10% on plastic and ±5% on other products depending on material behaviour, environmental conditions, and product geometry.
Critical dimensions (where specified) override general tolerances.
Installation & Application Note
Final installed geometry may vary depending on mounting configuration, installation method, and application conditions.
Products are designed for use in dynamic environments, and performance may vary depending on installation setup.
The customer is responsible for assessing suitability for the intended application. All supply is subject to RHINO’s Terms of Trade, available at:
https://mudguards.co.nz/about-us/legal/terms-of-trade/
which apply to the fullest extent permitted by law.
Design & Specification Disclaimer
RHINO reserves the right to modify product design, materials, and specifications without prior notice.
Intellectual Property & Usage Restrictions
All drawings, designs, specifications, and associated intellectual property remain the property of RHINO.
This document must not be reproduced, copied, disclosed, or used for manufacturing, reverse engineering, or replication without prior written consent from RHINO.
Provision of this drawing does not grant any manufacturing rights.
General Notes
Do not scale from drawing. Refer to stated dimensions only.
3D CAD files (if supplied) are provided for reference and integration purposes only and are not certified for manufacturing use.
Products are supplied for commercial and trade use.
If you’d like to request a design file, please complete the form below.
