Infill Spacers – Stainless Box U Shape
Infill spacers fit between the guards and add stability to guard fittings, reduce spray and make for a classy finish. There are two options – the box or U shape and are manufactured ready for installation. Infill spacers are available in either aluminium or stainless and come in a range of spans and widths to suit your requirements.

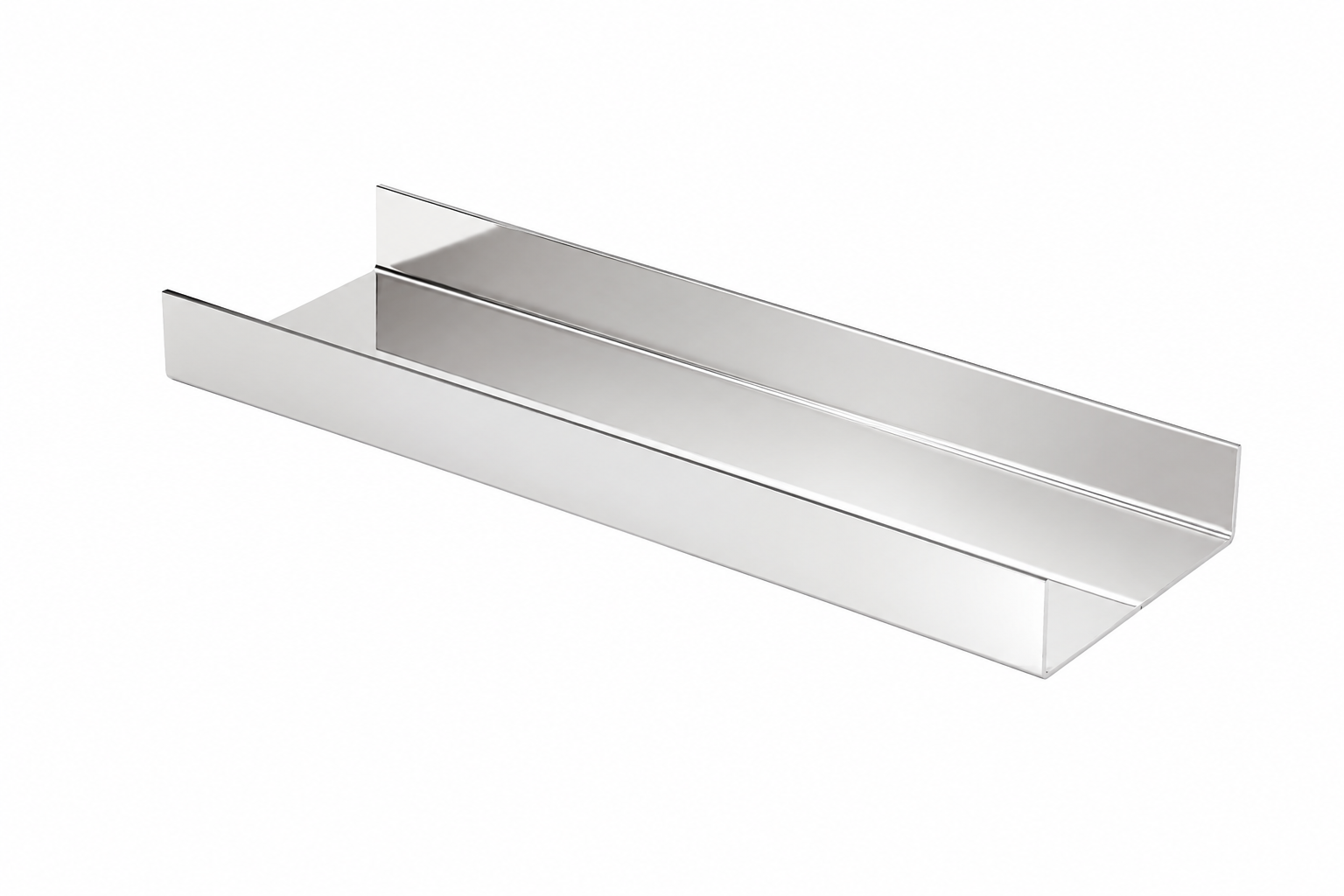

U-shaped infill spacers are flat with a fold at each end to connect to the guards. The folds on the widths are at 90 degrees to fit the bottom of the guard.
Made to fit most guards in the Rhino range the standard width is 600mm and standard height is 40mm.
Standard material is 1.2mm Stainless steel 304 Bright Annealed.
Sizing Guide (all measurements are in mm)
- Span – distance on the top of the infill spacer between the guards.
- Width – width of the spacer and closely matches the width of the guards.
Other sizes are available on request here.
Stainless Part #
Span
Width
Height
IFUST1060
100
600
40
IFUST1260
125
600
40
IFUST1560
150
600
40
FUST1760
175
600
40
IFUST2060
200
600
40
IFUST2260
225
600
40
IFUST2560
250
600
40
IFUST2760
275
600
40
IFUST3060
300
600
40
IFUST3260
325
600
40
IFUST3560
350
600
40
Buy Now
Infill Spacers – Stainless Box U Shape
Infill spacers fit between the guards and add stability to guard fittings, reduce spray and make for a classy finish. There are two options – the box or U shape and are manufactured ready for installation. Infill spacers are available in either aluminium or stainless and come in a range of spans and widths to suit your requirements.
U-shaped infill spacers are flat with a fold at each end to connect to the guards. The folds on the widths are at 90 degrees to fit the bottom of the guard.
Made to fit most guards in the Rhino range the standard width is 600mm and standard height is 40mm.
Standard material is 1.2mm Stainless steel 304 Bright Annealed.
Sizing Guide (all measurements are in mm)
- Span – distance on the top of the infill spacer between the guards.
- Width – width of the spacer and closely matches the width of the guards.
Other sizes are available on request here.
| Stainless Part # | Span | Width | Height |
| IFUST1060 | 100 | 600 | 40 |
| IFUST1260 | 125 | 600 | 40 |
| IFUST1560 | 150 | 600 | 40 |
| FUST1760 | 175 | 600 | 40 |
| IFUST2060 | 200 | 600 | 40 |
| IFUST2260 | 225 | 600 | 40 |
| IFUST2560 | 250 | 600 | 40 |
| IFUST2760 | 275 | 600 | 40 |
| IFUST3060 | 300 | 600 | 40 |
| IFUST3260 | 325 | 600 | 40 |
| IFUST3560 | 350 | 600 | 40 |
