A Chassis Pole for (Almost) Every Application

From one-bolt to lugged, short offset to long step-out, and stainless to zinc silver — RHINO’s chassis pole range is built to fit your mounting, design, and material requirements.

RHINO Chassis Poles: Designed to Fit Your Build

Some chassis poles only suit one kind of setup. But RHINO isn’t in the business of one-size-fits-some.

We know that every truck and trailer build is different. Some need tight clearances. Others need offset. Some face coastal corrosion. Others demand stainless for corrosive environments. And mounting needs vary too — from fast bolt-on to dual-lug high-load installs.

That’s why RHINO offers a complete chassis pole range — so you can match the right mounting, length, design, and finish to your exact application. Available in 19 RHINO chassis pole models to suit virtually every mounting, offset, and finish requirement — so you can match the right fit to your truck or trailer build.

🔩 Mounting Types

Choosing the right mounting type is the first step in making sure your chassis pole works seamlessly with your build. RHINO offers two proven base options:

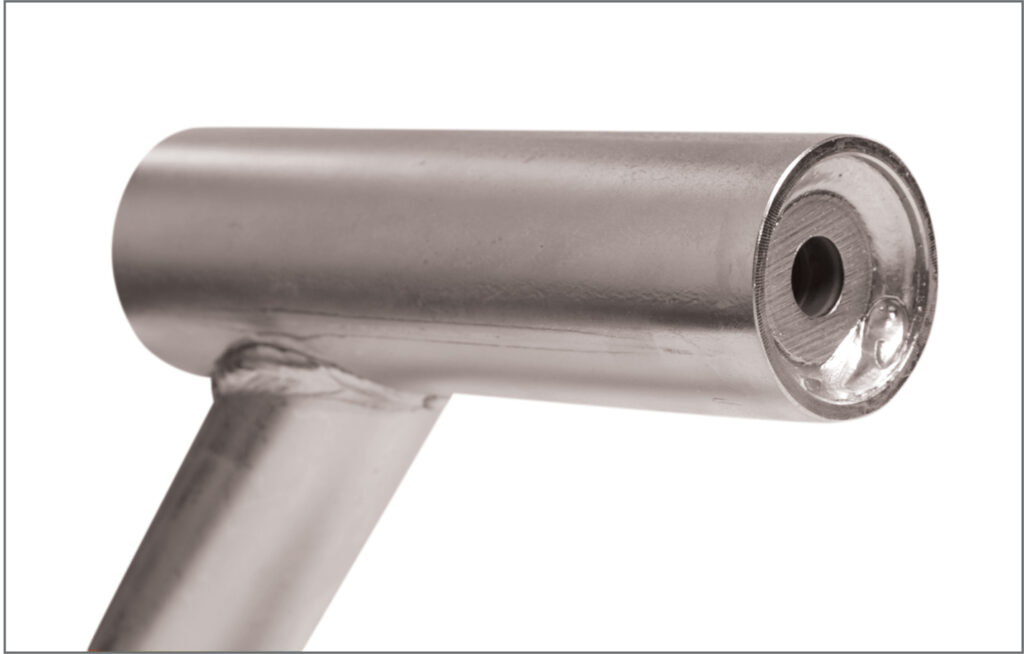

RHINO CPO one bolt close up — **One-Bolt Base** – Quick installation with minimal chassis drilling. Ideal for standard setups and fast fit-outs where simplicity and speed are key.

RHINO CPOL lugged two-bolt close up — **Lugged Base (2-Bolt)** – Preferred for heavy-duty service, high-vibration applications, and anti-rotation security. Often chosen for stainless steel guards, fire shields, or when maximum load stability is needed.

🧱 Base Design

**Extended base (Step-Out)** – 200mm for more clearance

📏 Length

625 mm
690/700 mm
750 mm
850 mm
870 mm
950 mm

🧪 Material & Finish Options

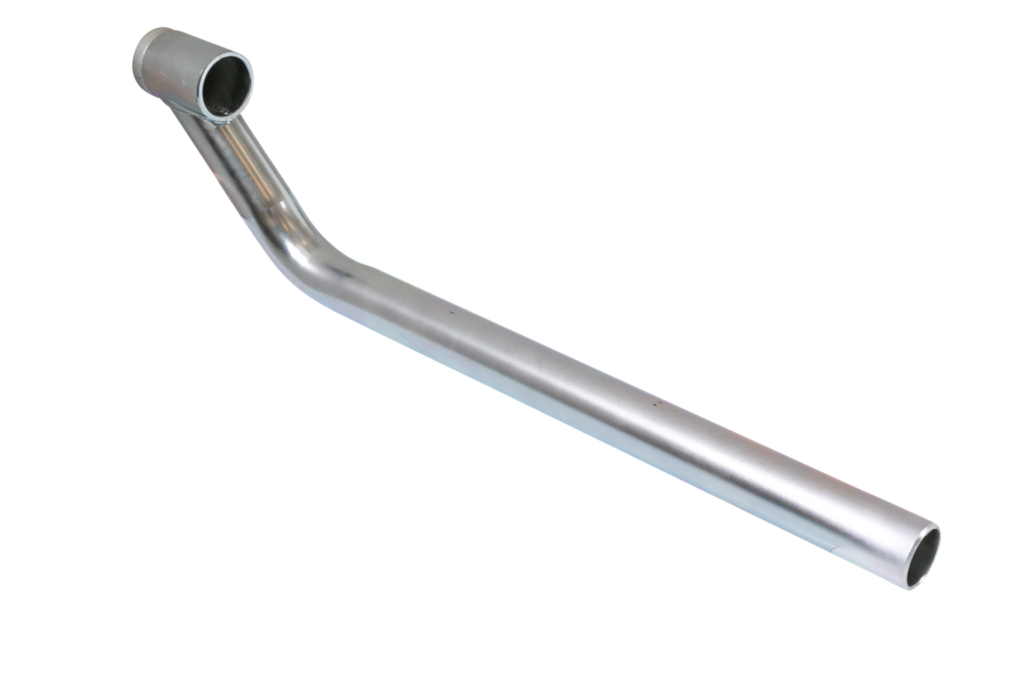

Rhino Chassis Pole Offset CPO 750mm long — *Electroplated Zinc*

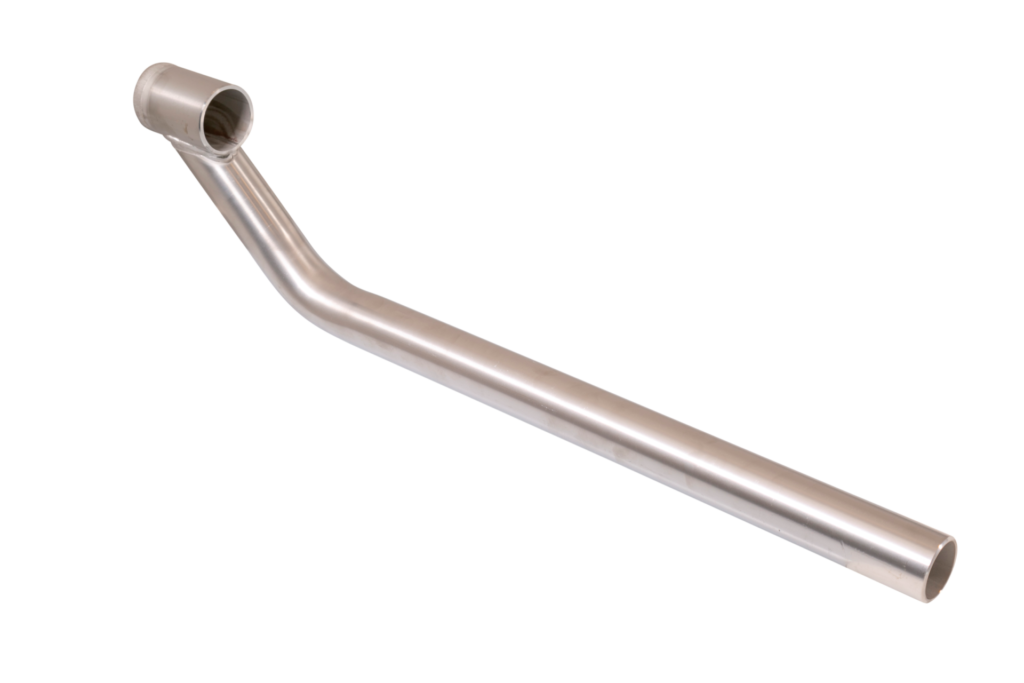

Rhino Stainless Steel Chassis Pole Offset Polished Matt STCPOL-MATT - 750mm long — *Stainless – Matt*

Rhino stainless steel polished chassis pole — *Stainless polished*

🔧 Steel (Zinc Electroplated)

RHINO electroplated poles have a base level of corrosion resistance and offer a smooth, professional finish. They’re also ideal for powder coating or painting. Zinc electroplating chemically bonds a zinc layer to the base steel using an electric current — not a coating that chips like chrome.

📖 More on zinc electroplating →

🔧 Stainless Steel – Polished

Preferred for dangerous goods, concrete trucks, corrosive environments, and coastal exposure. RHINO uses 304-grade stainless steel, with bright polished finish for premium presentation and long-term corrosion resistance. 📖 Salt spray test results →

🔧 Stainless Steel – Matt

Same 304-grade stainless performance but with a matte surface for a softer aesthetic. 📖 Salt spray test results →

📊 Full Chassis Pole Spec Table

See all RHINO chassis poles.

🔩 Steel

Model	Length	Base	Lug	Offset	Finish	Link
CPS	750 mm	Standard	No	0 mm	Electroplated Silver	View
CPO625	625 mm	Standard	No	150 mm	Electroplated Silver	View
CPO	750 mm	Standard	No	150 mm	Electroplated Silver	View
CPO950	950 mm	Standard	No	150 mm	Electroplated Silver	View
CPOL625	625 mm	Lug (2-Bolt)	Yes	150 mm	Electroplated Silver	View
CPOL690	690 mm	Lug (2-Bolt)	Yes	150 mm	Electroplated Silver	View
CPOL	750 mm	Lug (2-Bolt)	Yes	150 mm	Electroplated Silver	View
CPOLL	850 mm	Lug (2-Bolt)	Yes	150 mm	Electroplated Silver	View
CPOS	870 mm	Step-Out	No	150 mm	Electroplated Silver	View

🔩 Stainless

Model	Length	Base	Lug	Offset	Finish	Link
STCPO	750 mm	Standard	No	150 mm	Polish	View
STCPO-MATT	750 mm	Standard	No	150 mm	Matte	View
STCPOL625	625 mm	Lug (2-Bolt)	Yes	150 mm	Polish	View
STCPOL625-MATT	625 mm	Lug (2-Bolt)	Yes	150 mm	Matte	View
STCPOL700	700 mm	Lug (2-Bolt)	Yes	150 mm	Polish	View
STCPOL700-MATT	700 mm	Lug (2-Bolt)	Yes	150 mm	Matte	View
STCPOL	750 mm	Lug (2-Bolt)	Yes	150 mm	Polish	View
STCPOL-MATT	750 mm	Lug (2-Bolt)	Yes	150 mm	Matte	View
STCPOS	870 mm	Step-Out	No	150 mm	Polish	View
STCPOS-MATT	870 mm	Step-Out	No	150 mm	Matte	View
